NDIS-B324R

Marca: NEXCOM
P/N:
Disponibilidad: Disponible

20,00 ¤

*IVA Incluido

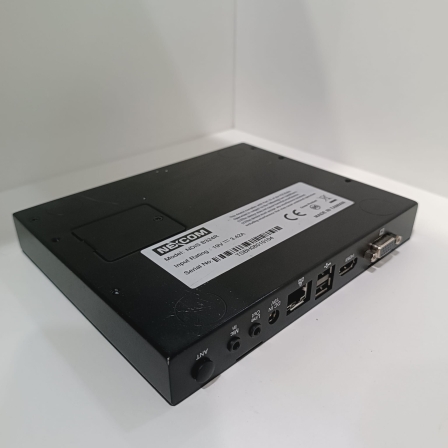

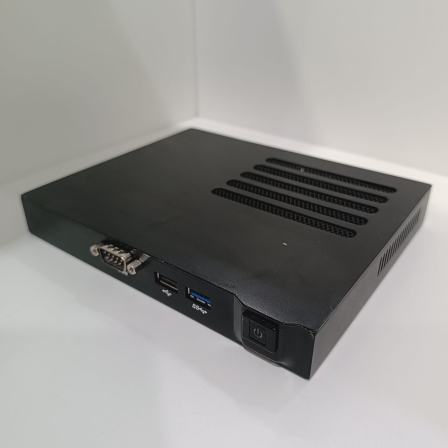

Network Digital Signage Player, Intel Celeron J1800 2.41GHz CPU, up to 4GB DDR3 RAM, VGA, HDMI, 1xGb LAN, 3xUSB 2.0, 1xUSB 3.0, 1xCOM, Audio, 2.5" SATA HDD Bay, Mini-PCIe, 65W External Power Adapter, wide temperature -20..+60C

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Built-in, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Celeron J1800
Max CPU frequency
2.58 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB 2.0
3
USB v3.x
1
Audio
Audio Controller
Intel HD Audio
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, HDMI, RJ45 Ethernet, 4xUSB, Audio Out, Mic In, DC Input
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
180 mm
Height
25 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.5 kg
Gross Weight
2 kg
